Specifications

General Characteristics1

Matisse CR Matisse CS Matisse CX
Linewidth (100 msec) <1 MHz rms <50 kHz rms2 <30 kHz rms2
Linewidth (100 µsec)3 <100 kHz rms <35 kHz rms <20 kHz rms
Spatial Mode TEM00
Beam Diameter4 0.8-1.0 mm (typical)
Beam Divergence <1.2 mrad (half angle)
Amplitude Noise <0.1% rms (above pump noise, added in quadrature)
Scan Range >50 GHz (at 780 nm)
Optics Tuning Range5,6,7
Matisse BBE-OPT8 668-1068 nm
Matisse BB-OPT 700-1000 nm
MOS-1 Optics Set 680-780 nm
MOS-2-BB Optics Set 730-930 nm
MOS-3 Optics Set 860-1020 nm
MOS-1-EXT 668-700 nm
MOS-3-EXT 1000-1068 nm

Output Power (780 nm) Matisse CR and CS

Millennia eV 25 W Millennia eV 20 W Millennia eV 15 W Millennia eV 10 W Millennia eV 5 W
MOS-1, MOS-2-BB Optics 7.2 W 5.5 W 3.8 W 2.0 W 0.8 W
Matisse BB-OPT Broadband Optics 6.5 W 4.7 W 3.5 W 1.8 W 0.7 W

Output Power (780 nm) Matisse CX

Millennia eV 25 W Millennia eV 20 W Millennia eV 15 W Millennia eV 10 W
MOS-1, MOS-2-BB Optics 6.2 W 4.7 W 3.3 W 1.7 W
Matisse BB-OPT Broadband Optics 5.3 W 4.0 W 3.0 W 1.5 W

Millennia Pump Laser and Lab Requirements

Pump Laser Polarization Horizontal
Pump Laser Power 5-25 W
Ambient Conditions ±0.5°C in the 20-30°C range, non-condensing humidity conditions
Cooling Water required to remove 20 W of heat from crystal; series connection from Millennia chiller recommended; 16-21°C ±0.1°C suggested
Laboratory Vibrational isolated optical table, dust-free air (flow box)
Electrical 100-250 VAC, max 2.5 A
Computer Control XP/Vista/Windows7/Windows8/Windows10/USB Port

Footnotes:

  1. Due to our continuous product improvement, all specifications are subject to change without notice.
  2. Linewidth relative to built-in reference cavity.
  3. Extrapolated.
  4. At Matisse C output port.
  5. Specification applies to Millennia eV 15 W, 20 W, and 25 W pump lasers. Please inquire for other pump lasers.
  6. Special optics available for custom tuning ranges.
  7. Matisse CX version has a reduced tuning range.
  8. Matisse BBE-OPT must be ordered with Matisse BB-OPT.

Features

Fully Automated

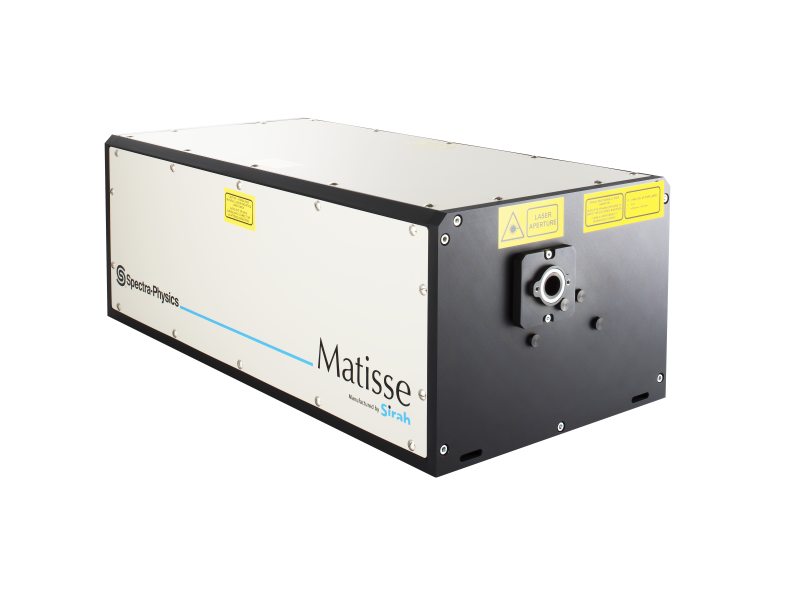

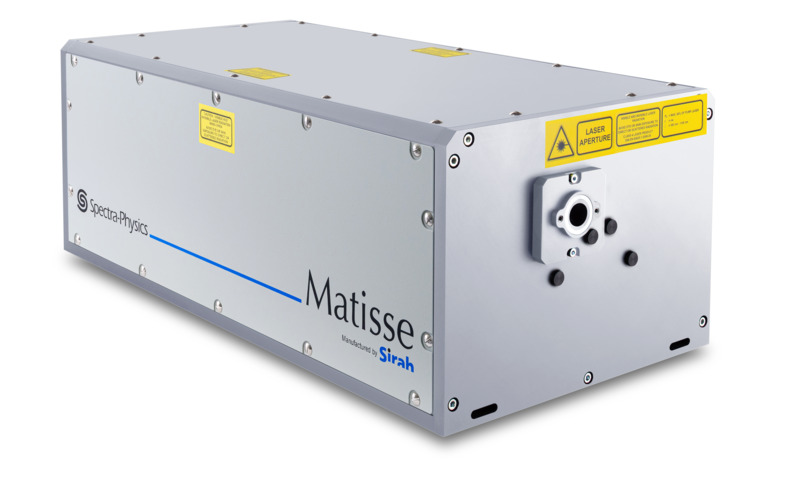

The Matisse C is fully automated for truly hands free operation. The laser is controlled with an intuitive GUI for quick and easy wavelength selection, piezo scanning, and frequency locking. It is housed in a compact closed box with no external adjustment knobs. An automated alignment optimization routine utilizes picomotors to seamlessly optimize the system for peak performance. Broadband coated mirrors enable hands-free tuning across 668–1068 nm, eliminating the need to manually change optics sets.

High Power and Broad Tuning

Broadband optics provides unprecedented 668–1068 nm automated continuous tuning. Coupled with the Millennia® eV 25 pump laser, the Matisse C produces >7.2 W of output power. The Matisse C provides more than 400 nm of tuning with automated optics set switching and linewidths down to 20 kHz, with fully integrated PDH lock to X reference cell.

Frequency Stabilization

Matisse CR

A unique phase lock loop technique provides <100 kHz  linewidth with passive frequency stabilization. The Matisse CR can be readily upgraded to the higher resolution Matisse CS.

Matisse CS

The Matisse CS actively-stabilized Ti:Sapphire ring laser utilizes a reference cavity and offers a spectral linewidth of <35 kHz.

Matisse CX

The Matisse CX provides spectral linewidths below 20 kHz. This ultra-narrow linewidth is achieved by use of an intra-cavity electro-optic modulator (EOM) and the Pound-Drever-Hall stabilization scheme with a high finesse external reference cavity.

Narrowest Linewidth

Noise contributions to linewidth occur on different timescales: seconds correspond to thermal drifts, tens to hundreds of milliseconds correspond to acoustic noise and vibrations, and microseconds correspond to electrical noise. Linewidth measurements for the Matisse C are provided for 100 milliseconds and 100 microsecond intervals. The 100 millisecond measurement fully accounts for electrical and vibrational noise contributions and showcases the exceptional engineering of the Matisse laser platform.

Mode-Hop-Free Tuning

Superior mechanical stability, specially designed optical mounts, unique tuning methods, and the preferred Out of Plane cavity design of the Matisse C all contribute to the exceptional mode-hop-free scanning range of >50 GHz. In order to take this to the next level, we have developed Scan Stitching for wide mode-hop-free tuning over the full wavelength range (up to 400 nm.) The fully automated Scan Stitching function is easily activated through the Matisse C GUI.

Dynamic Scan Range

The Matisse is featured with a Dynamic Scan Range function for easy adjustment of the wavelength tuning resolution. This is achieved via a built in switchable piezo amplifier with easy software control. Tuning resolutions down to 50 kHz can be selected when fine wavelength adjustments are needed.

Variable Low Frequency Locking

CW single frequency ring lasers utilize a Phase Lock Loop (PLL) in order to stabilize the laser cavity to a single longitudinal mode. The Matisse C incorporates a unique PLL technique that delivers low dither frequencies (down to 500 Hz) to minimize laser noise and allows easy adjustability of the frequency (500 Hz – 3 kHz) via software.

Compatible Power Sensors

To verify and analyze the output power of your Matisse C laser, we recommend the Ophir 10A (above 3 W output power) thermal power sensor and Centauri laser power meter.  Additional information on this laser measurement equipment can be found on the ophiropt.com website.  Other Ophir sensors and meters may also be suitable for the Matisse C, depending on application. Ophir also works with laser system developers to achieve embedded beam diagnostics to monitor system performance as an OEM solution.
