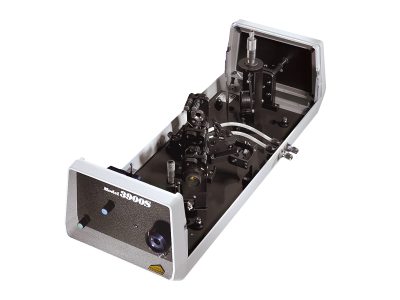

The 3900S is a high-performance, tunable, solid state IR laser. It delivers tunable, CW output from 675 to 1100 nm in a low-cost package. Pumped with either an argon ion laser or 532 nm diode-pumped solid state laser, the 3900S solid state Ti:Sapphire laser produces up to 3.5 W of TEM00 output for the broadest range of IR applications.
Average Power2 | 675 nm6 | 700 nm | 790 nm | 1000 nm | 1050 nm7 |
---|---|---|---|---|---|
Millennia eV 15 W | 1.5 W | 1.8 W | 3.0 W | 1.2 W | 1.0 W |
Millennia eV 10 W | 800 mW | 1.2 W | 2.2 W | 500 mW | 500 mW |
Millennia eV 5 W | NA | 600 mW | 1.0 W | 250 mW | NA |
Average Power2 | 675 nm6 | 700 nm | 790 nm | 1000 nm | 1050 nm7 |
---|---|---|---|---|---|
Broadband Optics | 700-1000 nm | 700-1000 nm | 700-1000 nm | 700-1000 nm | 700-1000 nm |
Optional X-Long Optics | 950-1100 nm | 950-1100 nm | 950-1100 nm | 950-1100 nm | 950-1100 nm |
Optional Blue Optics | 675-750 nm | 675-750 nm | 675-750 nm | 675-750 nm | 675-750 nm |
Average Power2 | 675 nm6 | 700 nm | 790 nm | 1000 nm | 1050 nm7 |
---|---|---|---|---|---|
Standard 3900S | <40 GHz | <40 GHz | <40 GHz | <40 GHz | <40 GHz |
With Thin Etalon | <15 GHz | <15 GHz | <15 GHz | <15 GHz | <15 GHz |
With Thin/Thick Etalon | <1 GHz | <1 GHz | <1 GHz | <1 GHz | <1 GHz |
Average Power2 | 675 nm6 | 700 nm | 790 nm | 1000 nm | 1050 nm7 |
---|---|---|---|---|---|
Noise3 | <1% | <1% | <1% | <1% | <1% |
Power Drift4 | <3% | <3% | <3% | <3% | <3% |
Average Power2 | 675 nm6 | 700 nm | 790 nm | 1000 nm | 1050 nm7 |
---|---|---|---|---|---|
Spatial Mode | TEMoo | TEMoo | TEMoo | TEMoo | TEMoo |
Polarization | >100:1 Horizontal | >100:1 Horizontal | >100:1 Horizontal | >100:1 Horizontal | >100:1 Horizontal |
Beam Diameter (1/e²)5 | 0.95 mm | 0.95 mm | 0.95 mm | 0.95 mm | 0.95 mm |
Beam Divergence, full angle5 | <1 mrad | <1 mrad | <1 mrad | <1 mrad | <1 mrad |
Footnotes:
To verify and analyze the output power of your 3900s laser, we recommend the Ophir 3A (7Z02621) thermal power sensor and Centauri laser power meter. Additional information on this laser measurement equipment can be found on the ophiropt.com website. Other Ophir sensors and meters may also be suitable for the 3900s, depending on application. Ophir also works with laser system developers to achieve embedded beam diagnostics to monitor system performance as an OEM solution.
