Specifications

Element 2 - Output Characteristics

7-500 10-600 10-1000 20-600 20-1200
Pulse Duration <7 fs <10 fs <20 fs
Bandwidth >300 nm at -10 dB >100 nm (FWHM) >40 nm (FWHM)
Average Power >500 mW >600 mW >1000 mW >600 mW >1200 mW
Pulse Energy >6.2 nJ >7 nJ >11.7 nJ  >7 nJ >14.1 nJ
Peak Power >840 kW >700 kW >1100 kW >350 kW >700 kW
Central Wavelength3 (standard) 800 nm ±20 nm 800 nm ±10 nm
Repetition Rate3 (standard) 80 ±5 MHz
Noise (9 Hz - 3 MHz) <0.05% rms
Power Stability4 (peak-to-peak) ±0.5%
Beam Divergence NA <2 mrad
M2 NA <1.3
Beam Diameter (1/e2) <2 mm
Polarization >100:1 (horizontal)
Femtolock™ 2 Optional
CEP4 Optional5

Footnotes:

  1. Due to our continuous product improvement program, specifications may change without notice.
  2. Specifications apply to standard wavelength and standard repetition rate.
  3. For other values, please contact Spectra-Physics.
  4. Measured over 24 hours at constant environmental conditions.
  5. Optional for Element 2 7-500, 10-600, and 20-600. For other models, please contact Spectra-Physics.
  6. Element 2 is a Class IV - High Power Laser, whose beam is, by definition, a safety and fire hazard. Take precautions to prevent exposure to direct and reflected beams. Diffuse as well as specular reflections can cause severe skin damage.

Element 2 CEP4 - Output Characteristics

7-500 CEP4 10-600 CEP4 20-600 CEP4
Pulse Duration Uncompressed output
Bandwidth >300 nm at -10 dB >100 nm (FWHM) >40 nm (FWHM)
Average Power >250 mW >300 mW >300 mW
Central Wavelength2 (standard) 800 nm ±20 nm
Repetition Rate2 (standard) 80 MHz
fCEO 0 Hz
CEP Stability <60 mrad rms (0.05 Hz-500 kHz) over 12 hours
Beat Signal SNR >35 dB
Femtolock™ 2 Optional

Footnotes:

  1. Due to our continuous product improvement program, specifications may change without notice.
  2. For oher values, please contact Spectra-Physics
  3. Element 2 CEP4 is a Class IV - High Power Laser, whose beam is, by definition, a safety and fire hazard. Take precautions to prevent exposure to direct and reflected beams. Diffuse as well as specular reflections can cause severe skin damage.

Features

Ultrashort Pulses with Highest Stability

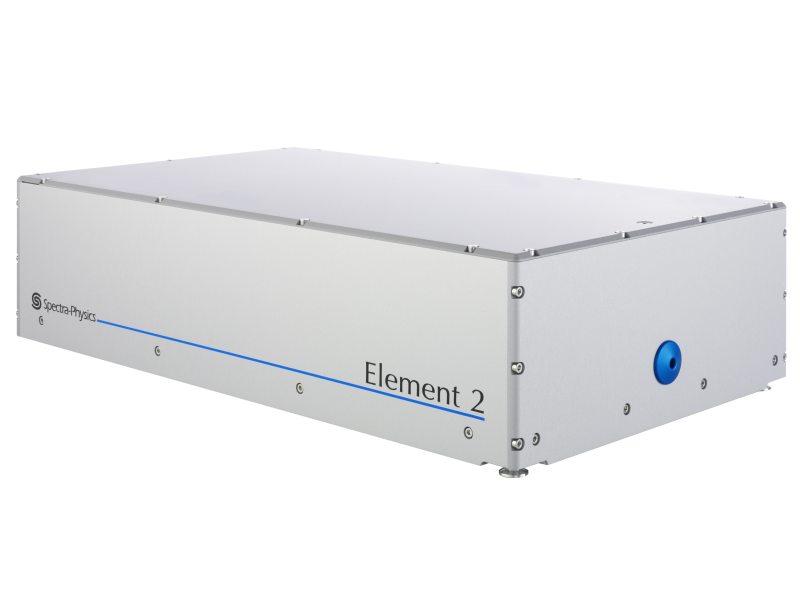

With its robust design, the Element 2 oscillator family provides outstanding power stability and superior carrier envelope offset beat note power and frequency stability. With the various Element 2 models Spectra-Physics offers shortest pulses of sub-7 fs with an average power of >500 mW, and sub-10 fs pulses with an average power up to >1000 mW. The Element 2 ultrafast oscillator is pumped with an integrated Spectra-Physics® Millennia® eV™ solid state green laser. The resonator is based on Dispersive Mirror (DM) technology for precise intra-cavity dispersion management and optimum stability for mode-locking. Therefore, Element 2 guarantees highest quality, outstanding peak power, and ultrafast pulses with extraordinary spectro-temporal characteristics even for the most demanding applications.

Compatible Power Sensors

To verify and analyze the output power of your Element 2 laser, we recommend the Ophir 3A-PF-12 (7Z02720) thermal power sensor and Centauri laser power meter.  Additional information on this laser measurement equipment can be found on the ophiropt.com website.  Other Ophir sensors and meters may also be suitable for the Element 2, depending on application. Ophir also works with laser system developers to achieve embedded beam diagnostics to monitor system performance as an OEM solution.
