Specifications

Free Space 375-515 nm Specifications

Excelsior One
375		 Excelsior One
405		 Excelsior One
445		 Excelsior One
473		 Excelsior One
488		 Excelsior One
515
Wavelength 375 ±5 nm 405 ±5 nm 445 ±5 nm 473 nm 488 ±5 nm 515 nm
Output Power 70 mW 50, 100, 200 mW 100 mW 10, 50 mW 50, 100 mW 50 mW
Longitudinal Mode Multi Multi Multi Single Multi Single
Spectral Linewidth <0.5 nm <1 nm <1 nm <0.01 pm <1.5 nm <0.01 pm
Technology Direct Diode Direct Diode Direct Diode DPSS Direct Diode DPSS
Beam Quality, TEM00 <1.3 <1.3 <1.3 <1.1 <1.3 <1.1
Beam Diameter (1/e2) 0.7 ±0.07 mm
Beam Divergence <1.0 mrad <1.1 mrad <1.2 mrad <1.1 mrad <1.3 mrad <1.2 mrad
Beam Ellipticity 1 ±0.1 1 ±0.1 1 ±0.1 1 ±0.15 1 ±0.1 1 ±0.15
Polarization Ratio >100:1
Beam Pointing Stability <6 µrad/°C
Noise (20 Hz - 20 MHz) <0.2% rms <0.2% rms <0.2% rms <0.3% rms <0.3% rms <0.5% rms
Power Stability (over 8 hours) <±2%
Warm-up Time <5 min
Beam Height 19 mm
Operating Voltage 5 VDC
Maximum Power Consumption <10 W <10 W <10 W <35 W <10 W <35 W
Operating Temperature 10 to 40°C (80% relative humidity)
Maximum Laser Head Base Plate Temperature 50°C
Storage Temperature Range -20 to +60°C
Dimensions (L x W x H) 3.94 x 1.57 x 1.57 in (100 x 40 x 40 mm)

Fiber Coupled 405-532 nm Specifications

Excelsior
One 405-FC		 Excelsior
One 445-FC		 Excelsior
One 473-FC		 Excelsior
One 488-FC		 Excelsior
One 515-FC		 Excelsior
One 532
Multi Mode-FC		 Excelsior
One 532
Single Mode-FC
Wavelength 405 ±5 nm 445 ±5 nm 473 nm 488 ±5 nm 515 nm 532 nm 532 nm
Output Power 70 mW 70 mW 40 mW 70 mW 40 mW 40 mW 150 mW
Longitudinal Mode Multi Multi Single Multi Single Multi Single
Spectral Linewidth <1 nm <1 nm <0.01 pm <1.5 nm <0.01 pm <0.5 nm <0.01 pm
Technology Direct Diode Direct Diode DPSS Direct Diode DPSS DPSS DPSS
Beam Quality, TEM00 <1.1
Power Stability (constant ambient temperature) <±1.0% (over 8 hours)
Power Stability vs Ambient Temperature Changes <±3.0% (over 8 hours)
Noise (20 Hz - 20 MHz) <0.5 %
Mode Field Diameter, typical 3.5 ±0.7 µm 3.7 ±0.7 µm 3.7 ±0.7 µm 4.0 ±0.7 µm 4.3 ±0.7 µm 4.4 ±0.7 µm 4.4 ±0.7 µm
Fiber Numerical Aperture (NA) 0.07-0.1
Polarization Ratio >100:1
Polarization Orientation Tolerance (E-Vector) 90 ±4°
Beam Ellipticity 1 ±0.1
Warm-up Time <5 min
Fiber Length 1 m ±100 mm
Fiber Connector FC/APC or FC/AFC (optional)
Fiber Jacket Type ø3 mm PVC or SUS
Operating Voltage +5 VDC
Maximum Power Consumption <10 W <10 W <35 W <10 W <35 W <35 W <35 W
Operating Temperature 10 to 40°C (80% relative humidity)
Maximum Laser Head Base Plate Temperature 50°C
Storage Temperature Range -20 to +60°C
Dimensions (L x W x H) 3.94 x 1.57 x 1.57 in (100 x 40 x 40 mm)

Free Space 532-1064 nm Specifications

Excelsior
One 532
Multi Mode		 Excelsior
One 532
Single Mode		 Excelsior
One 542		 Excelsior
One 561		 Excelsior
One 642		 Excelsior
One 785		 Excelsior
One 1064
Wavelength 532 nm 532 nm 542 nm 561 nm 642 ±3 nm 785 ±10 nm 1064 nm
Output Power 50 mW 50, 100, 150, 200 mW 50 mW 20, 50, 75, 100 mW 60, 100 mW 45 mW 500 mW
Longitudinal Mode Multi Single Single Single Multi Multi Single
Spectral Linewidth <0.5 nm <0.01 pm <0.01 pm <0.01 pm <0.5 nm <0.01 nm <0.04 pm
Technology DPSS DPSS DPSS DPSS Direct Diode Direct Diode DPSS
Beam Quality, TEM00 <1.1 <1.1 <1.1 <1.1 <1.3 <1.3 <1.1
Beam Diameter (1/e2) 0.7 ±0.07 mm 0.8 ±0.1 mm
Beam Divergence <1.2 mrad <1.2 mrad <1.2 mrad <1.2 mrad <1.7 mrad <2.1 mrad <2.1 mrad
Beam Ellipticity 1 ±0.1 1 ±0.1
Polarization Ratio >100:1
Beam Pointing Stability <6 µrad/°C
Noise (20 Hz - 20 MHz) <0.5% rms <0.2% rms <0.2% rms <0.2% rms <0.2% rms <0.2% rms <0.2% rms
Power Stability (over 8 hours) <±2%
Warm-up Time <5 min <5 min
Beam Height 19 mm
Operating Voltage +5 VDC
Maximum Power Consumption <35 W <35 W <35 W <35 W <10 W <10 W <35 W
Operating Temperature 10 to 40°C (80% relative humidity)
Maximum Laser Head Base Plate Temperature 50°C
Storage Temperature Range -20 to +60°C
Dimensions (L x W x H) 3.94 x 1.57 x 1.57 in (100 x 40 x 40 mm) 3.94 x 1.57 x 1.57 in (100 x 40 x 40 mm)

Fiber Coupled 542-1064 nm Specifications

Excelsior One 542-FC Excelsior One 561-FC Excelsior One 642-FC Excelsior One 785-FC Excelsior One 1064-FC
Wavelength 542 nm 561 nm 642 ±3 nm 785 ±10 nm 1064 nm
Output Power 70 mW 70 mW 70 mW 25 mW 100 mW
Longitudinal Mode Single Single Multi Multi Single
Spectral Linewidth <0.01 pm <0.01 pm <0.5 nm <0.01 nm <0.04 pm
Technology DPSS DPSS Direct Diode Direct Diode DPSS
Beam Quality, TEM00 <1.1
Power Stability (constant ambient temperature) <±1.0% (over 8 hours)
Power Stability vs Ambient Temperature Changes <±3.0% (over 8 hours)
Noise (20 Hz - 20 MHz) <0.5 % <0.5 %
Mode Field Diameter, typical 4.5 µm 4.7 µm 5.5 µm 5.0 ±0.9 µm 5.9±0.9 µm
Fiber Numerical Aperture (NA) 0.07-0.1
Polarization Ratio >100:1
Polarization Orientation Tolerance (E-Vector) 90 ±4°
Beam Ellipticity 1 ±0.1
Warm-up Time <5 min <5 min
Fiber Length 1 m ±100 mm
Fiber Connector FC/APC or FC/AFC (optional)
Fiber Jacket Type ø3 mm PVC or SUS
Operating Voltage +5 VDC
Maximum Power Consumption <35 W <35 W <10 W <10 W <35 W
Operating Temperature 10 to 40°C (80% relative humidity)
Maximum Laser Head Base Plate Temperature 45°C 45°C 50°C 50°C 45°C
Storage Temperature Range -20 to +60°C
Dimensions (L x W x H) 3.94 x 1.57 x 1.57 in
(100 x 40 x 40 mm)		 3.94 x 1.57 x 1.57 in
(100 x 40 x 40 mm)

Footnotes:

  1. Due to our continuous product improvement program, specifications may change without notice.

Features

One Platform for 12 Wavelengths

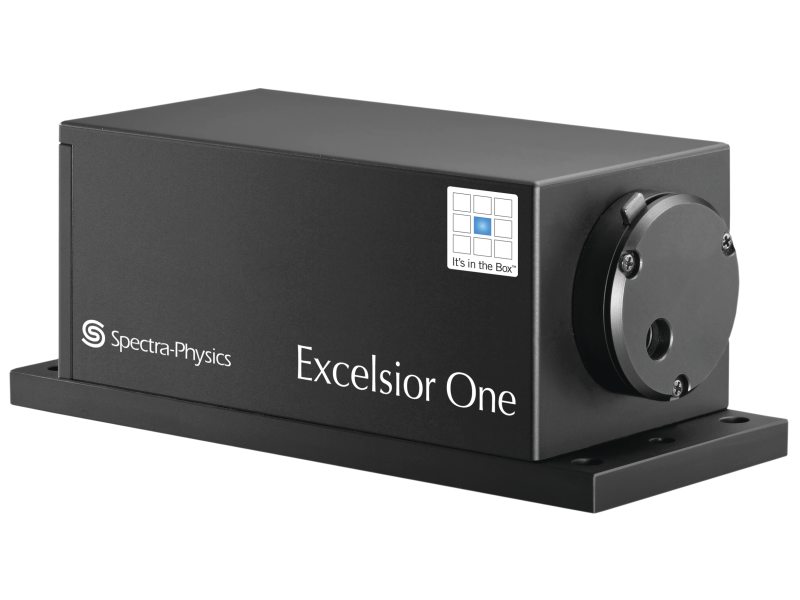

The Excelsior One series offers 1064 nm in the infrared, while the visible wavelengths options at 473, 515, 532, 542, and 561 nm are based on patented frequency doubling techniques for the DPSS models. Direct diode models – with the option of high speed modulation and serial software interface – are available at 375, 405, 445, 488, 642, and 785 nm. For ease-of-use and laser power control, all Excelsior One lasers are equipped with an RS 232 software interface.

The Excelsior One lasers are ideal for customers who rely on modularity in their instrument design. With the Excelsior One series, customers can choose among over 50 different versions in a single footprint and a single supply voltage. This enables maximum independence and the fewest design constraints.

Fiber-Coupled Versions

The Excelsior One series is also offered with fiber-coupled options from 405 nm to 1064 nm using single mode, polarization maintaining fibers. These fiber-coupled lasers offer outstanding power stability in harsh operating environments, and a polarization extinction ratio (PER) of less than -30 db over the specified operating temperature range. The fiber-coupled Excelsior One lasers are terminated with a FC/APC connector.

Compatible Power Sensors

To verify and analyze the output power of your Excelsior One laser, we recommend the Ophir PD300-UV (7Z02413) or PD300 (7Z02410) thermal power sensor and Centauri laser power meter.  Additional information on this laser measurement equipment can be found on the ophiropt.com website. Other Ophir sensors and meters may also be suitable for the Excelsior One, depending on application. Ophir also works with laser system developers to achieve embedded beam diagnostics to monitor system performance as an OEM solution.
