Excelsior® CW Lasers
Overview
Excelsior® of low-power continuous wave (CW) solid state lasers offer a comprehensive range of wavelengths and power levels. Providing state-of-the-art performance with the smallest footprint in their class. Excelsior lasers provide a consistent platform with the same mechanical footprint over a wide range of power levels and wavelengths. This allows for full component interchangeability among laser heads and controllers within a given architecture, requiring no additional adjustment or optimization.
- 13 wavelengths from UV to IR with power levels up to 500 mW
- Full suite of OEM and Scientific models
- High-quality TEM00 beam
- Exceptionally low optical noise on multi-longitudinal mode and single-frequency models
Products
Applications
- Flow Cytometry
- Semiconductor Inspection
- Confocal Microscopy
- Micro-array Readers
- Laser-induced Fluorescence
- Raman Spectroscopy
- DNA Sequencing
- Interferometry
Specifications
375-515 nm Specifications1, 6, 11
| Excelsior 375 | Excelsior 405 | Excelsior 445 | Excelsior 473 | Excelsior 488 | Excelsior 505 | Excelsior 515 | |
|---|---|---|---|---|---|---|---|
| Wavelength | 375 ±5 nm | 405 ±5 nm | 445 ±5 nm | 473 nm | 488 ±5 nm | 505 nm | 515 nm |
| Output Power2 | 16 , 70 mW | 50, 100 mW | 40, 100 mW | 5, 10, 50 mW | 20, 50, 100 mW | 10, 20 mW | 50 mW |
| Spectral Linewidth | <0.5 nm | <1 nm | <1 nm | <10 MHz (<0.01 pm) |
<1.5 nm | <1 nm | <10 MHz (<0.01 pm) |
| Spatial Mode | TEM00 | ||||||
| Longitudinal Mode | Multi | Multi | Multi | Single | Multi | Multi | Single |
| Frequency Drift | - | - | - | <50 MHz/°C | - | - | - |
| Beam Quality M2 | <1.5 | <1.5 | <1.5 | <1.1 | <1.5 | <1.2 | <1.1 |
| Beam Diameter (1/e2) | 1.3 ±0.3 mm | 1.3 ±0.3 mm | 1.3 ±0.3 mm | 0.10 ±0.01 mm 0.32 ±0.02 mm10 |
1.3 ±0.3 mm | 0.67 ±0.07 mm | 0.67 ±0.07 mm |
| Beam Divergence | <0.71 mrad | <0.76 mrad | <0.84 mrad | <0.73 mrad <2.2 mrad10 |
<0.9 mrad | <1.2 mrad | <1.2 mrad |
| Beam Ellipticity | 1 ±0.1 | 1 ±0.1 | 1 ±0.1 | 1 ±0.15 | 1 ±0.1 | 1 ±0.2 | 1 ±0.2 |
| Beam Pointing Stability | <6 µrad/°C | <6 µrad/°C | <6 µrad/°C | <6 µrad/°C | <6 µrad/°C | <10 µrad/°C | <10 µrad/°C |
| Noise | <0.2% rms (20 Hz-20 MHz) <1% rms (20 Hz-500 MHz) |
<0.2% rms (20 Hz-20 MHz) <1% rms (20 Hz-500 MHz) |
<0.2% rms (20 Hz-20 MHz) <1% rms (20 Hz-500 MHz) |
<0.5% rms (20 Hz-20 MHz) |
<0.2% rms (20 Hz-20 MHz) <1% rms (20 Hz-500 MHz) |
<1% rms (10 Hz-500 Hz) |
<0.5% rms (10 Hz-100 MHz) |
| Power Stability (over 8 hours) | <±2% | ||||||
| Polarization Ratio | >100:1 (vertical) | >100:1 (vertical) | >100:1 (vertical) | >100:1 (vertical) | >100:1 (vertical) | >100:1 (horizontal) | >100:1 (vertical) |
| Warm-up Time | <5 min | <5 min | <5 min | <5 min | <5 min | <10 min | <10 min |
| Beam Height | 19 mm | ||||||
| Technology | Direct Diode | Direct Diode | Direct Diode | DPSS | Direct Diode | DPSS (XC) | DPSS (XC) |
375-515 nm Utility and Environmental Specifications
| Excelsior 375 | Excelsior 405 | Excelsior 445 | Excelsior 473 | Excelsior 488 | Excelsior 505 | Excelsior 515 | |
|---|---|---|---|---|---|---|---|
| Operating Voltage3 | 5 VDC | 5 VDC | 5 VDC | 5 VDC | 5 VDC | 12 VDC | 12 VDC |
| Maximum Power Consumption | <10 W | <10 W | <10 W | <30 W | <10 W | <60 W | <60 W |
| Operating Temperature | 10-40°C (80% relative humidity) | ||||||
| Maximum Laser Head Base Plate Temperature4 | 50°C | ||||||
| Storage Temperature Range | -20 to 60°C (90% relative humidity, non-condencing) | ||||||
| Vibration | 3 G (15-500 Hz) |
3 G (15-500 Hz) |
3 G (15-500 Hz) |
3 G (15-500 Hz) |
3 G (15-500 Hz) |
3 G (15-500 Hz) |
2 G (15-200 Hz) |
| Shock Tolerance | Up to 25 G | ||||||
375-515 nm Static Alignment Tolerance5
| Excelsior 375 | Excelsior 405 | Excelsior 445 | Excelsior 473 | Excelsior 488 | Excelsior 505 | Excelsior 515 | |
|---|---|---|---|---|---|---|---|
| Beam Position | ±1 mm | ±1 mm | ±1 mm | ±1 mm | ±1 mm | ±0.5 mm | ±0.5 mm |
| Beam Angle | ±5 mrad | ±5 mrad | ±5 mrad | ±5 mrad | ±5 mrad | ±5 mrad | ±5 mrad |
532-1064 nm Specifications1, 6, 11
| Excelsior 532 Multi Mode |
Excelsior 532 Single Mode |
Excelsior 542 |
Excelsior 561 |
Excelsior 642 |
Excelsior 785 |
Excelsior 1064 |
|
|---|---|---|---|---|---|---|---|
| Wavelength | 532 nm | 532 nm | 542 nm | 561 nm | 642 ±3 nm | 785 ±10 nm | 1064 nm |
| Output Power2 | 10, 20, 50 mW | 50, 100, 150, 200, 300 mW7 | 50 mW | 20, 50, 75 mW 100, 150 mW8 |
35, 60, 100 mW | 45 mW | 500, 800 mW9 |
| Spectral Linewidth | <0.5 nm | <10 MHz (<0.01 pm) | <10 MHz (<0.01 pm) | <10 MHz (<0.01 pm) | <0.5 nm | <0.01 nm | <10 MHz (<0.04 pm) |
| Spatial Mode | TEM00 | ||||||
| Longitudinal Mode | Multi | Single | Single | Single | Multi | Multi | Single |
| Frequency Drift | - | <50 MHz/°C | <50 MHz/°C | <50 MHz/°C | - | - | <50 MHz/°C |
| Beam Quality M2 | <1.1 | <1.1 | <1.1 | <1.1 | <1.5 | <1.5 | <1.1 |
| Beam Diameter (1/e2) | 0.32 ±0.02 mm | 0.32 ±0.02 mm 0.7 ±0.07 mm7 |
0.7 ±0.07 mm | 0.7 ±0.05 mm | 1.0 ±0.2 mm | 1.0 ±0.2 mm | 0.45 ±0.05 mm |
| Beam Divergence | <2.5 mrad | <2.5 mrad <1.2 mrad7 |
<1.2 mrad | <1.2 mrad | <1.5 mrad | <1.9 mrad | <3.3 mrad |
| Beam Ellipticity | 1 ±0.1 | 1 ±0.1 | 1 ±0.1 | 1 ±0.1 | 1 ±0.1 | 1 ±0.1 | 1 ±0.1 |
| Beam Pointing Stability | <6 µrad/°C | <6 µrad/°C | <6 µrad/°C | <6 µrad/°C | <6 µrad/°C | <6 µrad/°C | <6 µrad/°C |
| Noise | <0.5% rms (20 Hz-20 MHz) |
<0.2% rms (20 Hz-20 MHz) |
<0.2% rms (10 Hz-100 MHz) |
<0.2% rms (20 Hz-20 MHz) |
<0.2% rms (20 Hz-20 MHz) <1% rms (20 Hz-500 MHz) |
<0.2% rms (20 Hz-20 MHz) <1% rms (20 Hz-500 MHz) |
<0.2% rms (10 Hz-100 MHz) |
| Power Stability (over 8 hours) | <±1% | <±1% | <±2% | <±1% | <±2% | <±2% | <±2% |
| Polarization Ratio | >100:1 (vertical) | >100:1 (vertical) |
>100:1 (vertical) | >100:1 (vertical) | >100:1 (vertical) | >100:1 (vertical) | >100:1 (horizontal) |
| Warm-up Time | <5 min | <5 min | <5 min | <5 min | <5 min | <5 min | <5 min |
| Beam Height | 19 mm | ||||||
| Technology | DPSS | DPSS | DPSS | DPSS | Direct Diode | Direct Diode | DPSS |
532-1064 nm Utility and Environmental Specifications
| Excelsior 532 Multi Mode |
Excelsior 532 Single Mode |
Excelsior 542 |
Excelsior 561 |
Excelsior 642 |
Excelsior 785 |
Excelsior 1064 |
|
|---|---|---|---|---|---|---|---|
| Operating Voltage3 | 5 VDC | 5 VDC 12 VDC7 |
5 VDC | 5 VDC 12 VDC8 |
5 VDC | 5 VDC | 5 VDC |
| Maximum Power Consumption | <30 W | <30 W <60 W7 |
<30 W | <40 W <60 W8 |
<10 W | <10 W | <30 W |
| Operating Temperature | 10-40°C (<90% relative humidity) | ||||||
| Maximum Laser Head Base Plate Temperature4 | 50°C | 50°C | 45°C | 45°C | 50°C | 50°C | 45°C |
| Storage Temperature Range | -20°C to 60°C (<90% relative humidity, non-condensing) | ||||||
| Vibration | 3 G (15-500 Hz) |
3 G (15-500 Hz) |
3 G (15-500 Hz) |
3 G (15-500 Hz) |
2 G (15-200 Hz) |
2 G (15-200 Hz) |
3 G (15-500 Hz) |
| Shock Tolerance | Up to 25 G | ||||||
532-1064 nm Static Alignment Tolerance5
| Excelsior 532 Multi Mode |
Excelsior 532 Single Mode |
Excelsior 542 |
Excelsior 561 |
Excelsior 642 |
Excelsior 785 |
Excelsior 1064 |
|
|---|---|---|---|---|---|---|---|
| Beam Position | ±0.5 mm | ±1 mm | ±0.1 mm | ±0.1 mm | ±1 mm | ±1 mm | ±0.1 mm |
| Beam Angle | ±5 mrad | ±0.5 mrad | ±0.5 mrad | ±0.5 mrad | ±5 mrad | ±5 mrad | ±0.5 mrad |
Footnotes:
- Complies with EN 60825-1:2001 Standards as applicable, laser safety Class 3B laser.
- Output power is variable via analog power supply. Specifications apply at nominal power level to 50% of nominal power. Recommended power range 10-100% of nominal power. Excelsior 488 available as fixed power version only.
- Power supply must meet following requirements:
- DC Voltage 5 and 12 VDC ±5%
- Power 30 W for 5 VDC, 60 W for 12 VDC
- Supply Input Ripple <150 mV peak-to-peak With adequate heatsink. - Static alignment tolerances relative to adjustment holes.
- Available cable lengths range from 0.5 to 1.8 m.
- 300 mW Excelsior 532.
- 100/150 mW Excelsior 561.
- Output power for Excelsior 1064 OEM model is 500 mW. Output power for Excelsior 1064 CDRH models is 500 mW and 800 mW.
- Specifications subject to change without notice.
Features
Diode-Pumped Solid State Lasers
Using patented frequency-doubling techniques, Excelsior diode-pumped solid state (DPSS) lasers provide visible light with high conversion efficiency for lower power consumption and improved reliability. The DPSS models are available in the regular, compact laser head size, or in the slightly larger footprint called the “Extended Cavity” (XC) series that is used for the 505 and 515 nm models as well as the higher power 532 nm and 561 nm models. The 1064 nm version is operated at its fundamental wavelength.
Direct Diode Lasers
The Excelsior family also includes a line of diode-based lasers with output powers from 16 to 100 mW. Wavelengths are generated directly from a semiconductor gain chip to reduce operational costs, increase lifetime use, and minimize space requirements.
Compatible Power Sensors

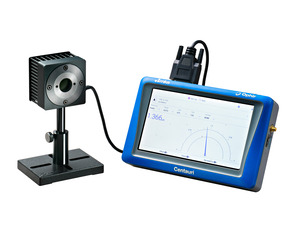

To verify and analyze the output power of your Excelsior laser, we recommend the Ophir PD300-UV (7Z02413) or PD300 (7Z02410) thermal power sensor and Centauri laser power meter. Additional information on this laser measurement equipment can be found on the ophiropt.com website. Other Ophir sensors and meters may also be suitable for the Excelsior, depending on application. Ophir also works with laser system developers to achieve embedded beam diagnostics to monitor system performance as an OEM solution.
