VGEN-G Tunable Short Pulsed Green Fiber Lasers
Overview
High Repetition Rate With Tunable Short Pulse Width For Fine Materials Processing
- Up to 30 W average output power
- 3–50 ns (preset values) pulse width
- Single shot to 1500 kHz (tunable) repetition rate
- Up to 180 µJ pulse energy
- Air cooled
Applications
- Laser Scribing
- Solar cells
- Wafers
- Laser Marking
- Wafers
- Laser Cutting and Drilling
- Thin films
- Medical Device Fabrication
- Display Manufacturing
- Materials Processing
- Gold
- Copper
Specifications
Specifications1,3
| VGEN-G-10 | VGEN-G-20 | VGEN-G-HE-10 | VGEN-G-HE-20 | VGEN-G-HE-30 | |
|---|---|---|---|---|---|
| Wavelength | 532 nm | ||||
| Average Output Power | 10 W | 20 W | 10 W | 20 W | 30 W |
| Repetition Rate | Single shot to 600 kHz | Single shot to 1200 kHz | Single shot to 600 kHz | Single shot to 1200 kHz | Single shot to 1500 kHz |
| Pulse Width | 3-20 ns (preset values) | 3-50 ns (preset values) | |||
| Max Peak Power | 10 kW | ||||
| Max Pulse Energy | 100 µJ | 180 µJ | |||
| Pulse to Pule Energy Instability2 | <2% RMS@250 kHz | ||||
| Polarization | Vertical | ||||
General Characteristics
| VGEN-G-10 | VGEN-G-20 | VGEN-G-HE-10 | VGEN-G-HE-20 | VGEN-G-HE-30 | |
|---|---|---|---|---|---|
| Operational Voltage | 24 VDC | ||||
| Operating Temperature | 15-35°C | ||||
| Laser Dimensions | 105 x 195 x 283.14 mm | 130 x 210 x 299 mm | |||
| Output Head Dimensions | 98.7 x 116.5 x 298.7 mm | 135 x 145 x 283.7 mm | |||
| Laser Unit Weight | 6 kg | 6.5 kg | |||
| Conversion Head Weight | 4 kg | 4.5 kg | |||
| Fiber Length | 300 cm | ||||
| Output Beam Diameter | 2 ±0.3 mm | 3 ±0.5 mm (Typical 2.8 mm) | |||
| Output Beam Parameters | M2 <1.3 | M2 <1.2 | |||
Footnotes:
- Due to our continuous improvement, all specifications are subject to change without notice.
- After 1 hour warmup.
- VGEN-G is a Class IV - High Power Laser, whose beam is, by definition, a safety and fire hazard. Take precautions to prevent exposure to the direct and reflected beams. Diffuse as well as specular reflections can cause severe skin or eye damage.
Features
Overview

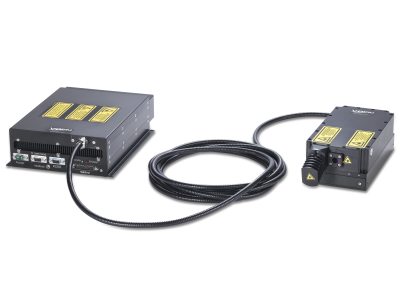

The VGEN-G series of pulsed green fiber lasers (532 nm) incorporate cutting-edge technology to provide top performance for precision-intensive applications such as solar cell, micro-machining, silicon scribing, fine processing, thin film cutting and more. The VGEN-G lasers are comprised of short-pulse, linearly polarized Ytterbium fiber lasers in MOPA configuration along with SHG (second harmonic generation) module, providing an output power of up to 30 W.
High Pulse Repetition Rate
VGEN-G lasers offer a high pulse repetition rate (up to 1.5 MHz) combined with a very short pulse (tunable down to 3 ns) and high peak power which enable high system throughput for maximum operation efficiency.
Robust Assembly
Housed in a robust assembly that meets industrial standards and fitted with metal armored fiber cable, the VGEN-G delivers a high quality, near-diffraction-limited output beam.
Compatible Power Sensors
To verify and analyze the output power of your VGEN-G laser, we recommend the Ophir 10A (7Z02637) or 30A-BB-18 (7Z02692) thermal power sensor and Centauri laser power meter. Additional information on this laser measurement equipment can be found on the ophiropt.com website. Other Ophir sensors and meters may also be suitable for the VGEN-G, depending on application. Ophir also works with laser system developers to achieve embedded beam diagnostics to monitor system performance as an OEM solution.
