• Single molecules studies
  • Nanomaterials science
  • Ultrafast surface dynamics
  • Multi-dimensional spectroscopy


Output Characteristics1

Tuning Range Conversion Efficiency2,3
630–1020 nm (signal)
1040–2600 nm (idler)
>12% at peak (signal and idler combined)

Output from Optional Harmonics Module

315–510 nm (SH of signal) >2.4% at peak
520–630 nm (SH of idler)
210-315 nm (TH of signal) >0.8% at peak
2200–4200 nm (DFG1) >3% at 3000 nm
4000–16000 nm (DFG2) >0.2% at 10000 nm

Pump Requirements from Spirit4

Wavelength 1030 nm or 1040 nm
Pulse Energy4 20 µJ–120 µJ
Average Power5 Up to 30 W
Pump Pulse Width 350 fs


  1. Due to our continuous product improvement program, specifications are subject to change without notice.
  2. Specified at pulse energy >40 µJ.
  3. Efficiency defined as OPA output power divided by Spirit pump power at the OPA input port.
  4. Please contact Spectra-Physics for available options at lower or higher pump pulse energy levels.
  5. Please contact Spectra-Physics for available options at higher average pump power.


Built-in Second Harmonic Generator

The Spirit-OPA includes a built-in second harmonic generator to convert the Spirit IR output into a 520 nm pump beam for the OPA, which then generates signal and idler in the redinfrared range (620–2700 nm). To further enhance its wavelength tuning capabilities, the OPA can be equipped with an optional harmonics. The result is straightforward access to a broad, gap-free wavelength range from UV to the mid IR (210 nm – 16 μm).

Factory Optimized Pump Pulse Energies

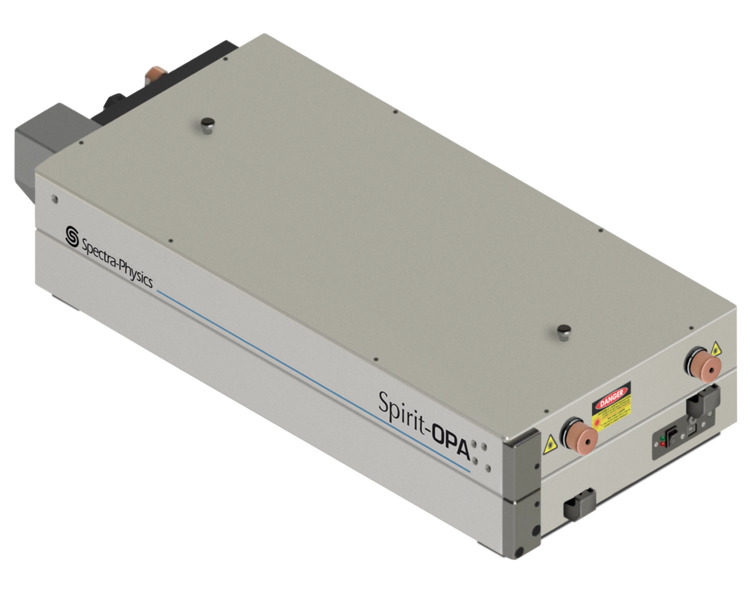

The Spirit-OPA can be factory optimized for a wide range of pump pulse energies (up to 120 μJ). This versatility allows for multiple configurations such as pumping a single OPA for maximum output energy or simultaneously pumping two or more OPAs for multibeam, multi-color time resolved experiments. The Spirit-OPA-30 is optimized for high power application and can be pumped with up to 30 W.

With its high repetition rate (100 kHz and above) and μJ level pulse energy, the Spirit family complements Spectra-Physics’ kHz, multi-mJ class Spitfire® Ace and Solstice®ultrafast amplifiers.

Compatible Power Sensors

To verify and analyze the output power of your Spirit-OPA laser, we recommend the Ophir 3A-PF-12 (7Z02720) thermal power sensor and Centauri laser power meter.  Additional information on this laser measurement equipment can be found on the ophiropt.com website.  Other Ophir sensors and meters may also be suitable for the Spirit-OPA, depending on application. Ophir also works with laser system developers to achieve embedded beam diagnostics to monitor system performance as an OEM solution.
