Specifications

Output Characteristics1, 2

IceFyre FS UV50 IceFyre FS IR200
Wavelength 343 ±2 nm 1030 ± 6 nm
Power >50 W @ 1 MHz and 1.25 MHz >200 W @ 1-50 MHz
Maximum Pulse Energy >50 μJ @ 1 MHz >200 µJ @ 1 MHz
Repetition Rate Range Single shot to 3 MHz Single shot to 50 MHz
Pulse Width, FWHM <500 fs
Pulse-to-Pulse Energy Stability <2% rms
Power Stability (after warm-up) <1% rms over 8 hours
Spatial Mode TEM00, (M2 <1.3)
Polarization >100:1 vertical
Beam Diameter at Exit 5.0 ±0.5 mm 4.0 ±0.5 mm
Beam Divergence, full angle <0.20 mrad <1.0 mrad
Beam Pointing Stability <±25 µrad/°C
PSO Capability (Position Synchronized Output) Yes
Pulse-on-Demand Triggering (internal and external) Yes
TimeShift Programmable Burst Mode Yes

Operating Conditions3

IceFyre FS UV50 IceFyre FS IR200
Warm-up Time, Typical <30 min from warm start mode, <60 min from cold start
Temperature Range 18-35°C
Altitude 0-2,000 m
Relative Humidity 0-65% non-condensing, dew point <19°C

Storage Conditions3

IceFyre FS UV50 IceFyre FS IR200
Temperature Range 0-50°C
Altitude 0-2,000 m
Relative Humidity 0-90% non-condensing, dew point <22°C

Physical Characteristics4

IceFyre FS UV50 IceFyre FS IR200
Laser Dimensions (L x W x H)5 35.67 x 17.05 x 6.89 in (906 x 433 x 175 mm)
Laser Weight 150 lbs (68 kg)
Utility Module Dimension (L x W x H) 17.99 x 18.98 x 3.96 in (457.1 x 482.1 x 100.7 mm)
Utility Module Weight 24.25 lbs (11 kg)

Features

IceFyre FS UV50 IceFyre FS IR200
EU RoHS 2 Compliant, China RoHS 2, CE Compliant Product compliant with restriction of hazardous substances
Internal Power Monitor Yes
Replaceable Output Window Yes, customer and field replaceable
Optional Safety Shutter Externally mounted for easy field service
Replaceable Active Laser Purge System (ALPS) Yes
Replaceable Head Desiccant Yes
Data Log Long and short term recording for diagnostics and equipment maintenance

Footnotes:

  1. Due to our continuous product improvement program, specifications may change without notice.
  2. . IceFyre FS is a Class IV - High-Power Laser, whose beam is, by definition, a safety and fire hazard. Take precautions to prevent exposure to the direct and reflected beams. Diffuse as well as specular reflections can cause severe skin or eye damage
  3. High temperature, high humidity operation limited to dew point <19°C; high temperature, high humidity storage limited to dew point <22°C.
  4. AC to DC converter module included with standard system.
  5. Dimensions noted do not include the removable lift handles.

Features

Overview

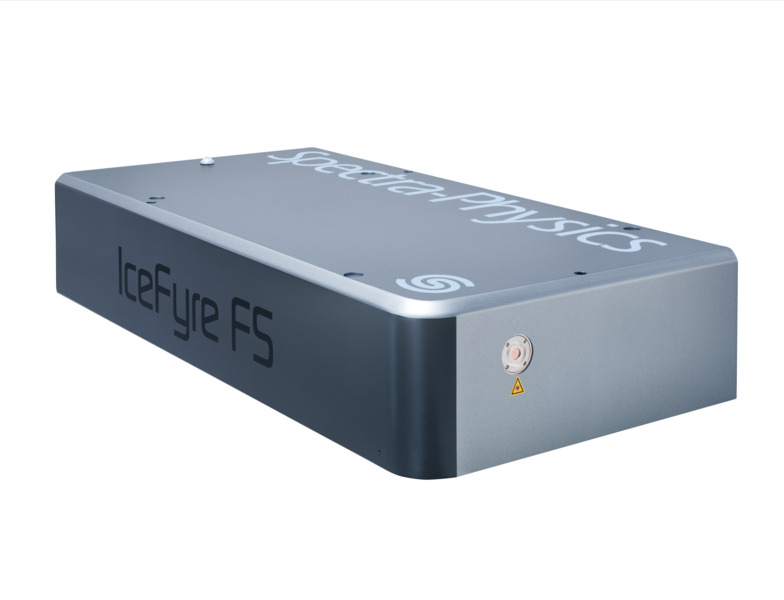

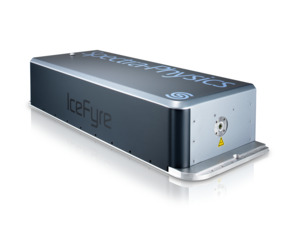

The IceFyre FS family is an extraordinary leap forward in industrial femtosecond laser technology, delivering industry-leading performance, versatility, reliability, and cost-of-ownership. The IceFyre FS femtosecond lasers are ideal for high throughput, highest-quality micromachining of critical materials, including glass, polymers, metals, semiconductors, thin films, and composites for demanding consumer electronics, clean energy, medical device, and industrial applications. Based on Spectra-Physics’ It’s in the Box™ design, IceFyre FS integrates laser and control electronics in a single, easy-to-install package.

Exceptional Versatility for Optimal Process Performance

IceFyre FS UV50 is the highest-performing UV femtosecond laser on the market, providing >50 W of UV output power, >50 µJ pulse energy, and pulse widths of 200 W) and high pulse energy (>200 µJ) with a wide repetition-rate range from a single shot to 50 MHz in the infrared. High average power (>200 W) and high pulse energy (>200 µJ) combined with high repetition rates up to 50 MHz push femtosecond micromachining applications to the highest levels of throughput at the lowest cost-of-ownership.

The IceFyre FS platform delivers exceptional versatility for optimal process performance. It offers flexible burstmode operation with adjustable repetition rates, pulseon-demand (POD) and position-synchronized output (PSO) triggering, and TimeShift™ programmable pulse capability for flexible burst-mode operation.

24/7 Industrial Reliability

Building on MKS’ deep experience and technology, the patent-pending IceFyre FS lasers pass extensive environmental qualification testing to ensure high reliability and a low cost-of-ownership. Fully automated and computer controlled, the laser exhibits exceptional stability in power, beam parameters, and beam pointing during 24/7 operation to deliver high precision and reproducibility for demanding applications.

Compatible Power Sensors

To verify and analyze the output power of your IceFyre FS laser, we recommend the Ophir F150(200)A-CM-16 (7Z07107) thermal power sensor and Centauri laser power meter. Additional information on this laser measurement equipment can be found on the ophiropt.com website. Other Ophir sensors and meters may also be suitable for the IceFyre FS, depending on application. Ophir also works with laser system developers to achieve embedded beam diagnostics to monitor system performance as an OEM solution.
