Applications

  • OPA pumping
  • 2D IR spectroscopy
  • Ultrafast pump-probe spectroscopy
  • Nonlinear optics
  • Four wave mixing spectroscopy
  • Ultrafast micromachining on a wide variety of materials

Specifications

Output Characteristics

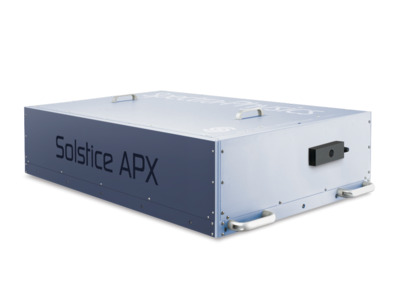

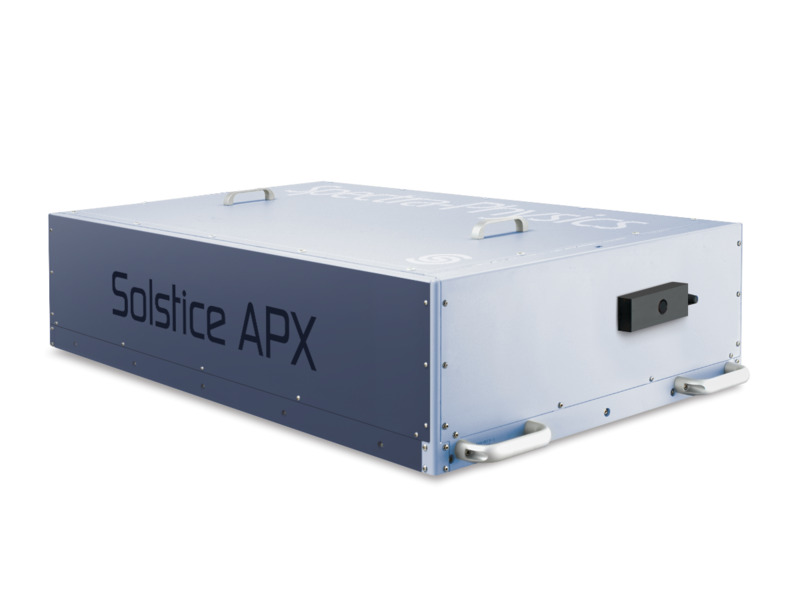

  Solstice APX
Pulse Width2,3 <35 fs–<120 fs
Repetition Rate4 1 kHz 5 kHz 10 kHz
Average Power
Ascend 60 >7.0 W >8.0 W >7.0 W
Ascend 40 >5.0 W >6.0 W >5.0 W
Pulse Energy
Ascend 60 >7.0 mJ >1.6 mJ >0.7 mJ
Ascend 40 >5.0 mJ >1.2 mJ >0.5 mJ
Pre-Pulse Contrast Ratio5 1000:1
Post-Pulse Contrast Ratio6 100:1
Operating Temperature Range ±5°C
Energy Stability <0.4% rms over 24 hours
Beam Pointing Stability <4 µrad (rms)
Wavelength8,9 780–820 nm9
Spatial Mode TEM00 (M2 <1.20, both axes)
Beam Diameter (1/e²) 10-11 mm (nominal)
Polarization Linear, Horizontal

Oscillator Output Options

  • Sol-Seed-50 >250 mW at 35 fs >500 mW at 100 fs11
  • Sol-Seed-100 >500 mW at 35 fs >1 W at 100 fs12
  • Mai Tai® HP Seeding >2 W at 100 fs11

Footnotes:

  1. Due to our continuous product improvements, specifications are subject to change without notice.
  2. A Gaussian pulse shape (0.7 deconvolution factor) is used to determine pulse width (FWHM) from autocorrelation signal as measured with a Newport PulseScout® autocorrelator.
  3. Pulse width must be specified at time of purchase.
  4. The desired optimum repetition rate can be specified at the time of purchase or additonal optics sets can be used to reconfigure the amplifier. Any system can be operated at reduced repetition rates through internal divide-down electronics.
  5. Defined as the ratio between peak intensity of output pulse to peak intensity of any pre-pulse that occurs >1 ns before the output pulse.
  6. Defined as the ratio between peak intensity of output pulse to peak intensity of any post-pulse that occurs >1 ns after the output pulse.
  7. At constant temperature. Variable temperature specification <20 µrad/°C, peak-to-peak.
  8. For wavelength extension through SHG, THG, FHG or OPA, please contact Spectra-Physics.
  9. Performance specifications apply at peak of gain curve. Tuning range for <35 fs version: 795–805 nm.
  10. The Solstice APX is a Class IV – High-Power Laser, whose beam is, by definition, a safety and fire hazard. Take precautions to prevent exposure to direct and reflected beams. Diffuse as well as specular reflections can cause severe skin or eye damage.
  11. Allows simultaneous output with Amplifier operation
  12. Amplifier cannot be run while Sol-Seed-100 output is active
